Thermo Shutter

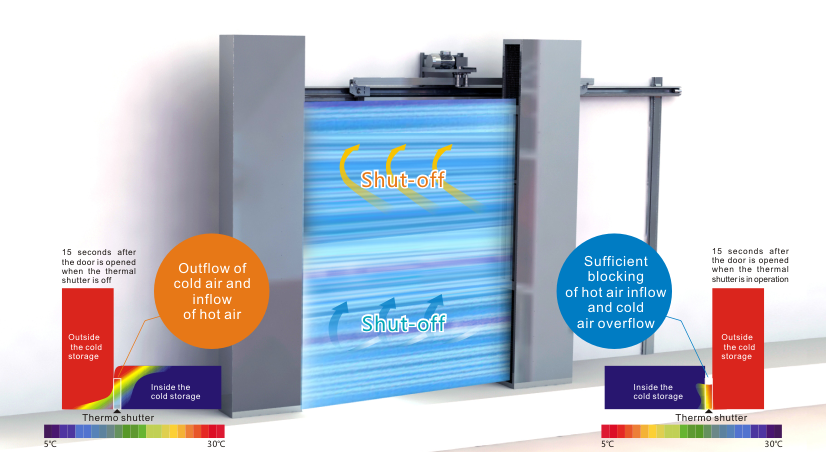

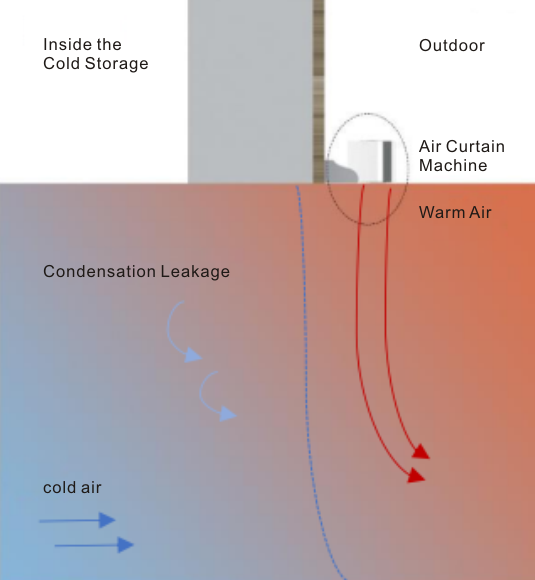

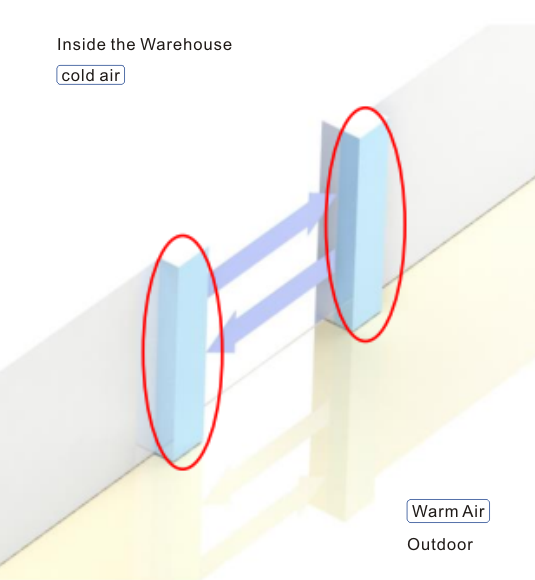

Dande thermo shutter is a horizontal air curtain for cold rooms, industrial freezing and cooling. In traditional air curtains, cooling air flowed out from only one direction(from top to down), lots of cooling air leaks from the down part. Air flow of Dande thermo shutter is horizontal and from both sides, so the pressure is the same and evenly distributed around the entire entry, resulting in a more effective protectitive barrier and preventing most of the cooling air leakage. Hygienic Dande thermo shutter will save a lot of energy and improve the quality of stored products.
Advantages
High Percentage Of Insulation:Generates a lateral airflow, getting more effective insulation both on the ground and on the ceiling (75%). In addition, you get a greater insulation efficiency compared with convention air curtains.
Refrigerator Installation Reducing Consumption:(Cost function)Isolates the air renewal charge, thereby reducing power consumption. Savings of 10-30% over conventional systems.
Reduced Investment (initial cost)
Reduces the cooling load: Reduces the number or size of the refrigeration equipment.
Defrost Frequency Reduction:Reduces the amount Of condensation inside the ware house, thus the frequency of defrosting may be less.
Improving The Quality Of The Interior Environment of The Warehouse:Minor variations in indoor temperature: Increases the stability of maintaining product quality.
Safety Zones Of Entry:(By creating a zone of intermediate temperature between the inside and the outside of the store): Avoids the creation of moisture (condensation) or ice inside, so there is greater safety with respect to the risks associated with using the same entrance (less slippage and better visibility).
Here you can make products with heights and dimensions beyond the above, please contact us.
This product will be changed without notice.
The top sheltering baffles in the options can be selected during installation, which can more effectively inhibit the diffusion of wind and block the leakage of cold air. In addition, when there is a gap between the wall (door) and the principal part, the slatted seals can be selected for sealing.
When there exists pressure differential between indoor and outdoor, the product may not function properly due to the influence of air flow caused by pressure difference.
For more information, please contact
