ABP Slurry Ice Unit
Slurry Ice
Slurry ice is a fluid consisting a mixture of brine and spherical ice crystals, made of millions of ice "micro-crystals" (typically 200 to 500 micron in diameter), the mixture of brine and spherical ice crystals has very good flow properties, making them easy to distribute through conventional pumps and piping and over product in direct contact chilling applications.
Slurry ice is well known for its advantages of rapid chilling, pumpable ice crystals and low energy consumption, it is commonly used in a wide range of applications such as air conditioning, packaging, industrial cooling processes, supermarkets, and cooling /storage of fish, poultry and other perishable products.
Advantages of Slurry Ice System
● High efficiency: ice generator can produce fine slurry ice efficiently.
● Modular unit: allows group duplication of system and reliable operation.
● No need to handle additional refrigeration installation on site, plug and play can save labor cost.
● All the pipe line can be prepared as kit in factory and make easy connection on site, or the whole system is containerized.
● 100% ecological material of brine or sea water is used.
● ABP owned design of control system with touch screen interface, the control software integrates parameters for different applications.
Slurry Ice System Diagram and Products
Slurry Ice Unit
? Capacity: 80KW
? Dimensions: LxWxH 2400x1860x1780
? Water-cooled double pipe condenser with titanium material which can stand tough condition in fishing vessels
● For the selection of different model, please contact our sales person below.
● For the selection of different model, please contact our sales person below.

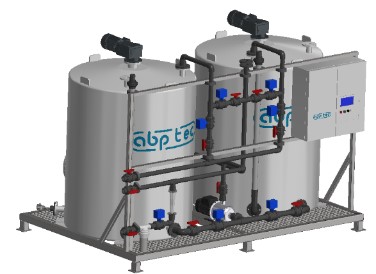

Tank Skid
? Tank volume : ICMS-2000V (2.0m3)x2
? Tank skid dimension: LxWxH 3325x2090x2260
? Delivery and circulation pump are integrated
? Motorized valves and sensors are integrated
? Tanks work in turn to deliver the slurry ice when it`s ready
● For the selection of different model, please contact our sales person below.
● For the selection of different model, please contact our sales person below.
Application: suitable for all kinds of fishing vessels
References
Tuna Longliner
Brief of Vessel
Vessel Length: 23.8m
Vessel Beam: 8m
Fishing Method: Tuna fishing
Ice Demand: Chilling and preservation of tuna
Fishing Area: Equator
Brief of System
|
Slurry Unit Model |
SIGF-070HS500Vx1 |
|
Sea Water Temperature |
30℃ |
|
Ice Concentration |
50% |
|
Yield of Slurry Ice |
5.2 tons/day |

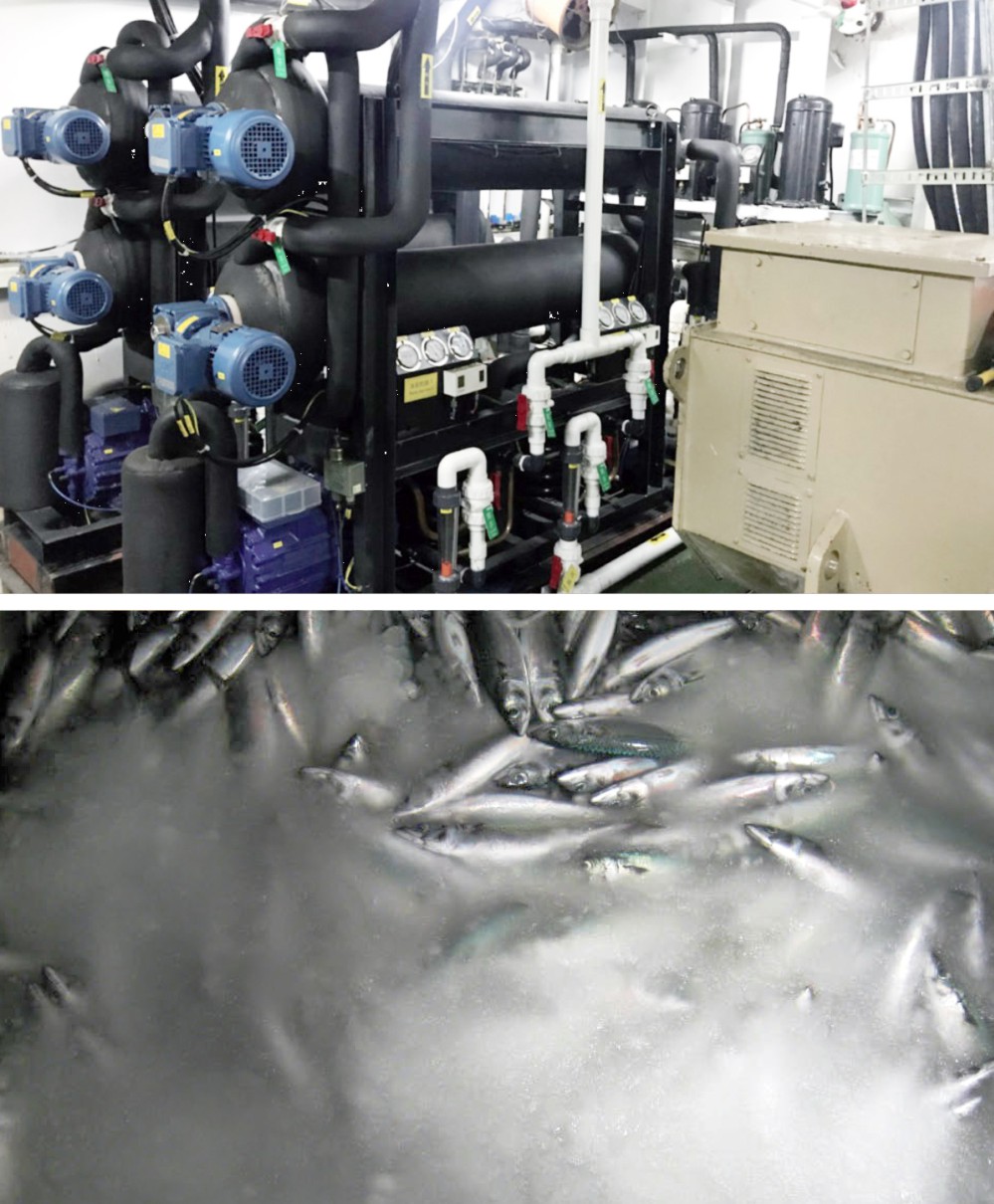

Small*Medium Sized Fishing Vessels
Brief of Vessel
Vessel Length: 40m
Vessel Beam: 7m
FIshing Method: Trawling
Demand: Chilling and preservation of the catch
Fishing Area: The South China Sea
Brief of System
|
Slurry Unit Model |
SIGF-070HSx2 |
|
Tanks |
ICMS-1000Vx1 |
|
Sea Water Temperature |
25℃ |
|
Ice Concentration |
30% |
|
Yield of Slurry Ice |
15 tons/day |

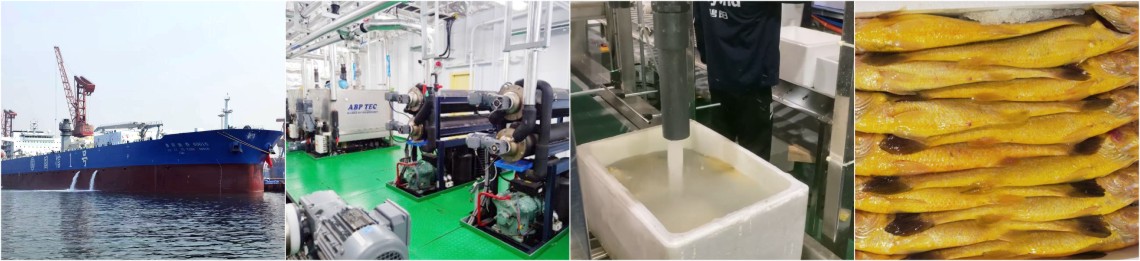

Aquaculture Vessel
Brief of Vessel
Vessel Length: 249.9m
Displacement: 130,000 tonnage
Fishing Method : fish raised in the aquaculture vessel
Ice Demand: Chilling and preservation during transportation
Fishing Area: The South China Sea and the East China Sea
Brief of Vessel
Vessel Length: 249.9m
Displacement: 130,000 tonnage
Fishing Method : fish raised in the aquaculture vessel
Ice Demand: Chilling and preservation during transportation
Fishing Area: The South China Sea and the East China Sea
Brief of System
|
Slurry Unit Model |
SIGF-100HSx10 |
|
Tanks |
ICMS-2000Vx1 |
|
|
ICMS-1500Hx2 |
|
Sea Water Temperature |
25℃ |
|
Ice Concentration |
30% (chilling) |
|
|
60%(Preservation) |
|
Yield of Slurry Ice |
IC30%, 50tons/d |
|
|
IC60%, 60tons/d |
