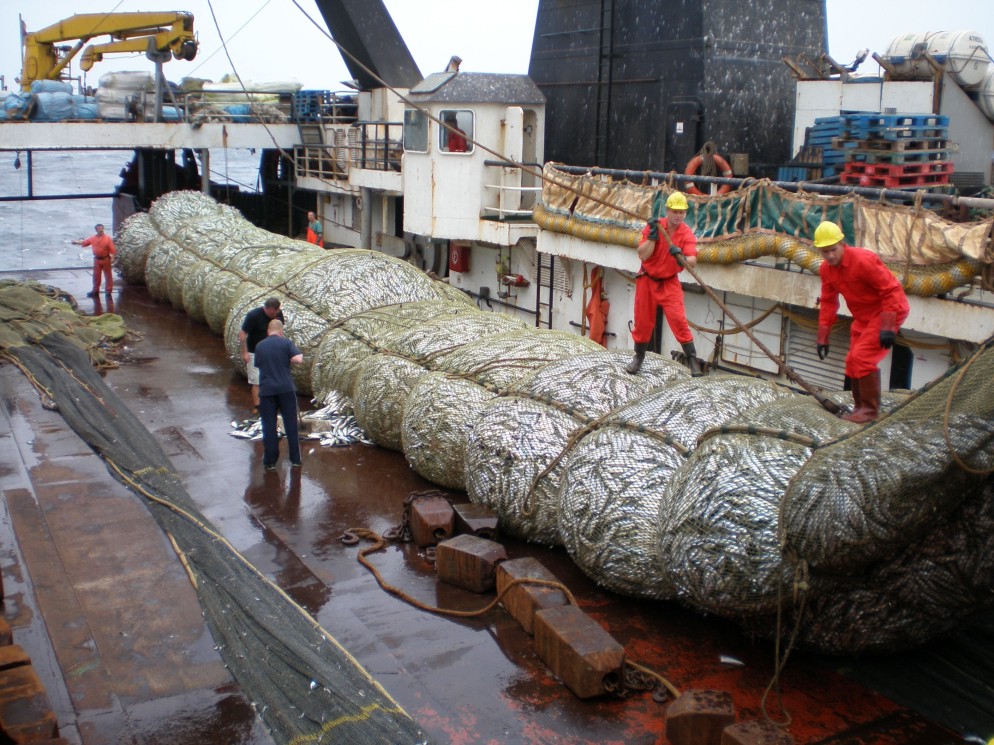

Super Trawler With Processing Factory
Based on the size, 3~30 tons of fish can be trawling each time. Fish can be produced into different products, final products could be: fish meal, frozen whole round fish,fish fillet and surimi etc.With years of experience in fishing and processing industry, experts from Chonson Beyond have developed suitable turnkey solutions for trawling vessels including fish automatic processing, refrigeration, strapping, palletizing and cold storage.
Features and Parameters
● Compressor:screw compressor from Japanese MYCOM;
● Auxiliary equipment (pressure vessel): from domestic top brands;

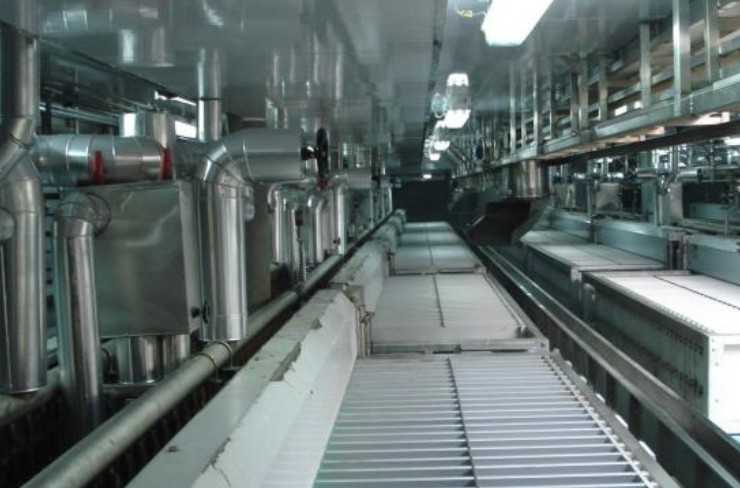

● Blast-freezing: horizontal plate freezers with efficient heat transfer;
● Air blower: made of stainless steel + hot-dip galvanized zinc preventing corrosion;
● Refrigeration pipes: made of special material for low temperature;
● Air supply grating: made of aluminum alloy based on Japanese mould, with load of up to 10t/㎡, suitable for forklifts;
● Refrigerant: R404A/R507A/R717, secondary heat exchanging with Calcium chloride saline;
● Leakage prevention: only does seawater circulate between engine room and cabin;
● There is no safety hazard or damage to the cargo;
● Pre-assembly: assembly of pipes and cables in the factory, reducing on-site workload;
● Unit structure: with a compact structure, the unit is space-saving and easy maintenance.
105m Super Trawler With Processing Factory
Vessel owner: THOR LTD
Length: 105m
Blast freezing: vertical plate freezers, 360T/day for freezing capacity;
Cold storage: 4000T; steel pipe winding coil was used as evaporater;
IMO：8907096
Fish processing:

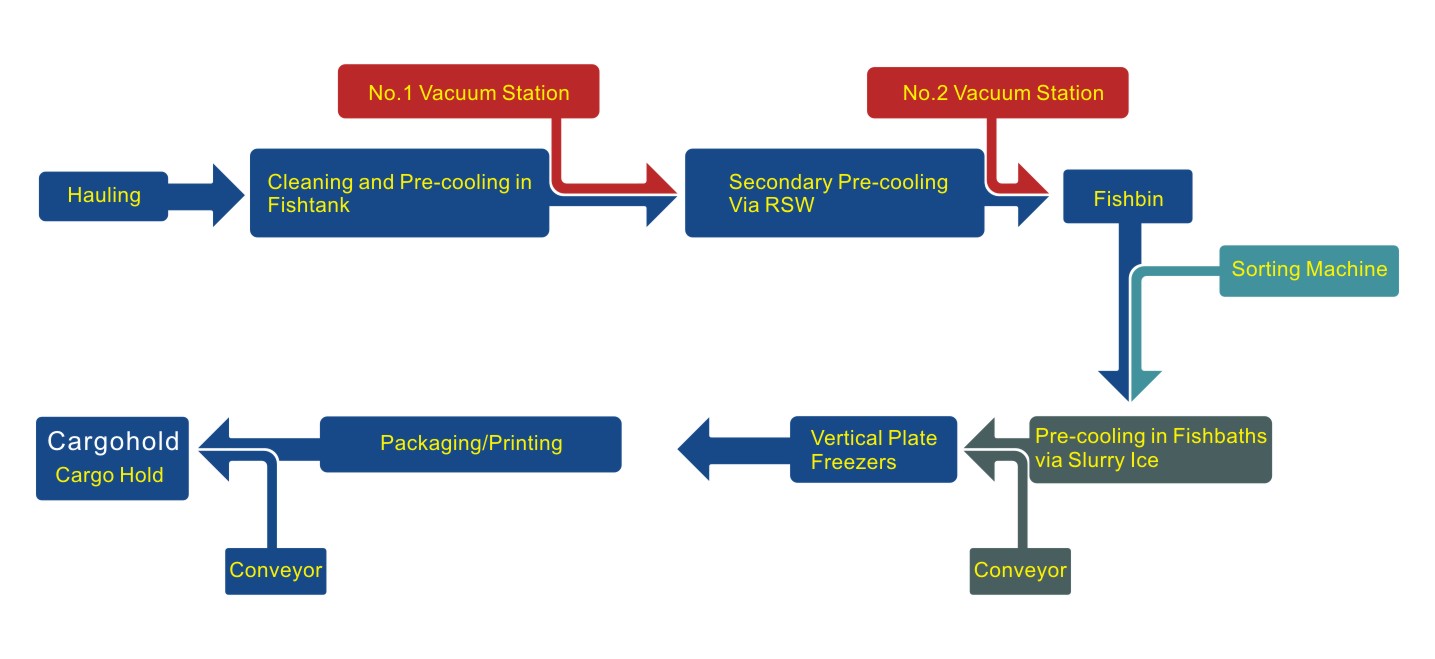

RSW for pre-cooling; Fish pumping system; Automatic fish grading; Automatic conveying; Plate freezing; Plastic sealing*boxing up; Strapping* palletizing.
140m Super Trawler With Processing Factory
Vessel owner: Pacific Andes LTD
Length: 140m
Blast freezing: vertical plate freezers, 800T/day for freezing capacity;
Cold storage: 6000T; air cooling;
IMO: 8507573
Fish processing:
RSW for pre-cooling; Automatic fish grading; Automatic conveying; fish fillet and surimi processing; Plate freezing; Plastic sealing*boxing up; Strapping* palletizing.
