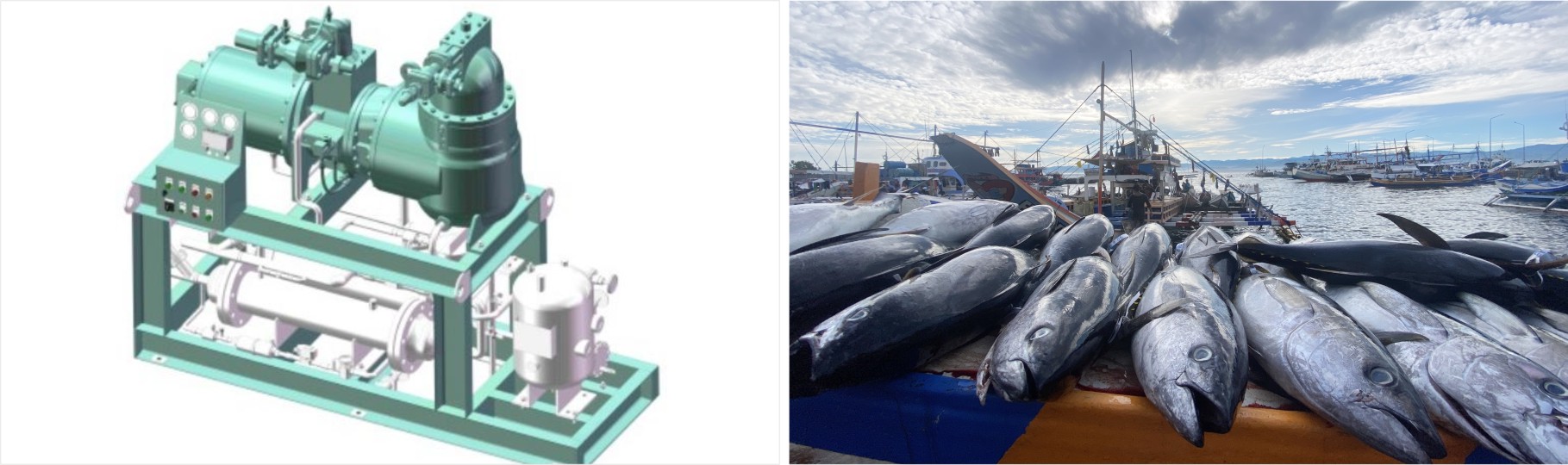

Ultra-low Temperature Compressor Unit

With key component from Japan MYCOM and auxiliary equipment from domestic brands, this unit is a reliable part of the super-low temperature turnkey solution.

Features and Parameters
● Refrigerant: environmentally friendly R404A;
● Cooling capacity based on ET-60°C/CT+35°C: 23.4KW (motor power 37KW);
● Capacity of semi-hermetic screw unit: 50%, 100% can be adjusted in two stages;
● Oil supply: without an oil pump, the system is compact and stable with low failure rate;
● External oil storage tank: oil supply for the unit operation is guaranteed;
● Pre-assembly: assembly of pipes and cables in the factory, reducing on-site workload;
● Unit structure: with a compact structure, the unit is space-saving and easy maintenance.

---

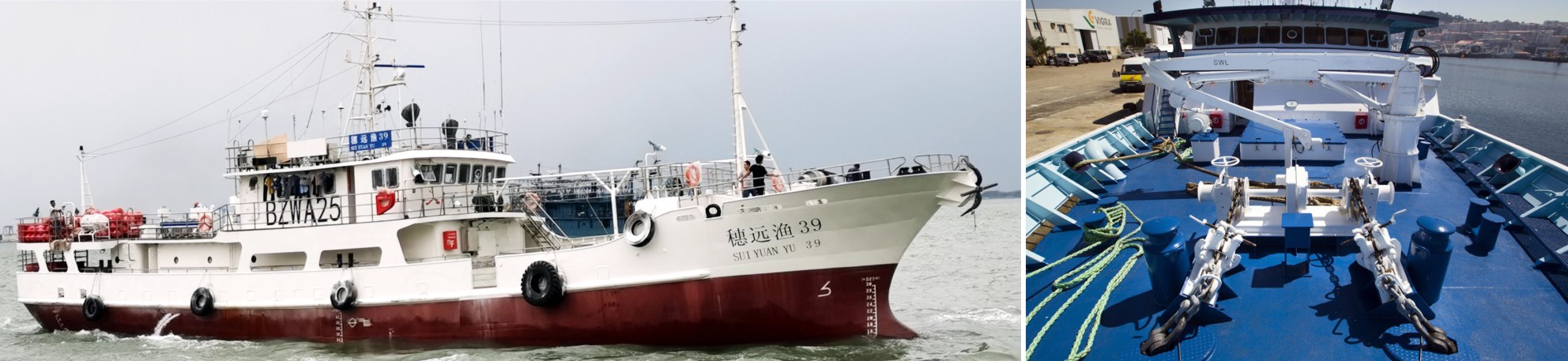

Ultra-low temperature long-liners for tuna
