Air-cooled Reefer

Reefer is a special purpose vessel transporting frozen/fresh cargoes (meat\fruit\vegetable) among harbors. Refrigeration system plays an important role in the cargo quality.

With years-long expertise in reefer, combined MYCOM(Japan) screw compressor and auxiliary equipment from domestic top brands, Chonson Beyond offers a reliable refrigeration solution for reefers.

Features and parameters
● Compressor:screw compressor from Japanese MYCOM;
● Auxiliary equipment (pressure vessel): from domestic top brands;
● Air blower: made of stainless steel + hot-dip galvanized zinc preventing corrosion;
● Refrigeration pipes: made of special material for low temperature;
● Air supply grating: made of aluminum alloy based on Japanese mould, with load of up to 10t/㎡, suitable for forklifts;
● Defrosting: secure defrosting by hot seawater;
● Leakage prevention: only does seawater circulate between engine room and cabin; there is no safety hazard or damage to the cargo;
● Pre-assembly: assembly of pipes and cables in the factory, reducing on-site workload;
● Unit structure: with a compact structure, the unit is space-saving and easy maintenance.

Reference1

5200 DWT Reefer (a series of 2 vessels)

Vessel owner: Shanghai Pelagic Fishing Company
Length: 115.00m
beam: 16.50m
Draught: 6.80 m
Main engine: 4500.00kw
Vessel name: KAI CHUANG101; IMO: 9810604
Vessel name: KAI CHUANG102; IMO: 9810616

Refrigeration: air cooling

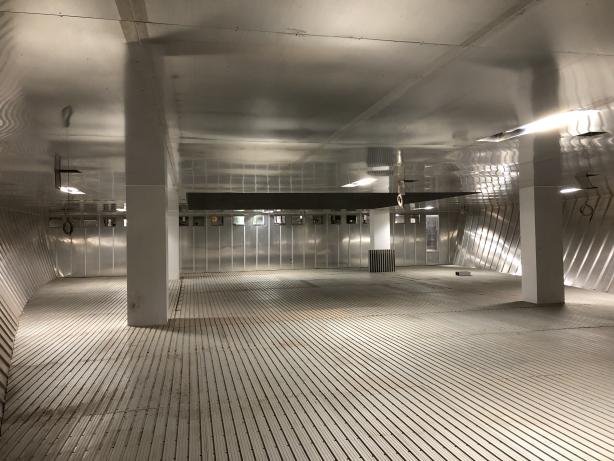

Air supply: air supplied by grating with holes on floor
Refrigeration capacity: 6126m3
Technical support: Japan Mayekawa
Turnkey solution: Chonson Beyond

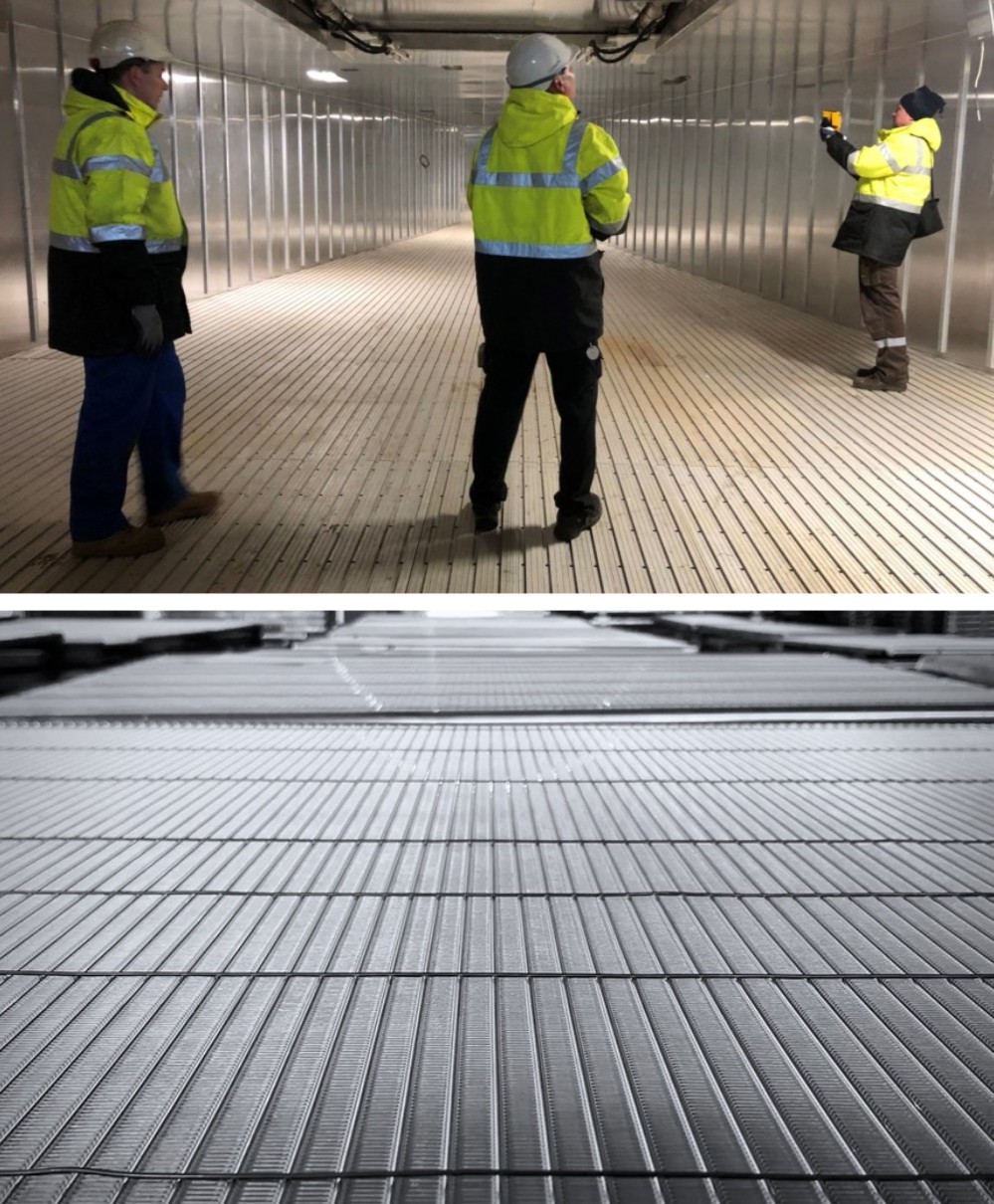

Aluminum Alloy Grating
Refrigeration Compressor Units

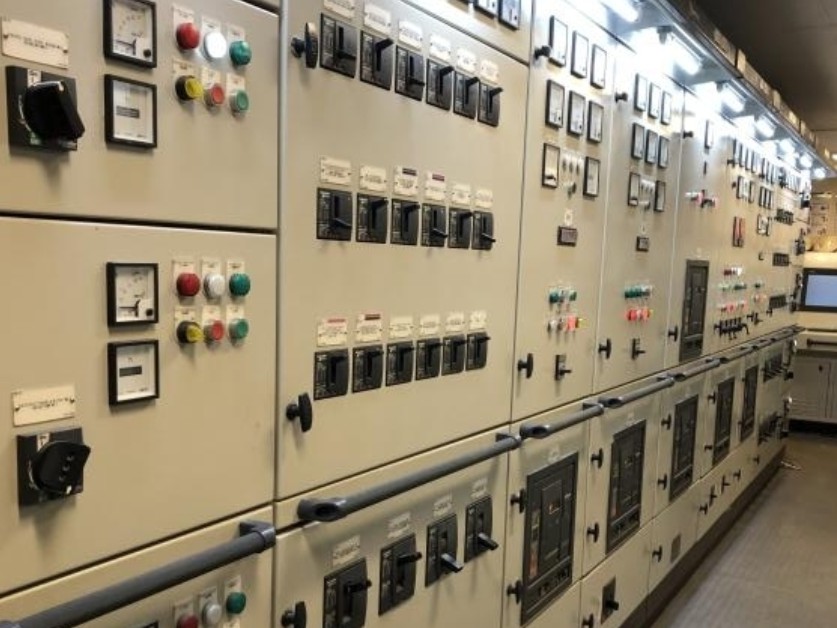

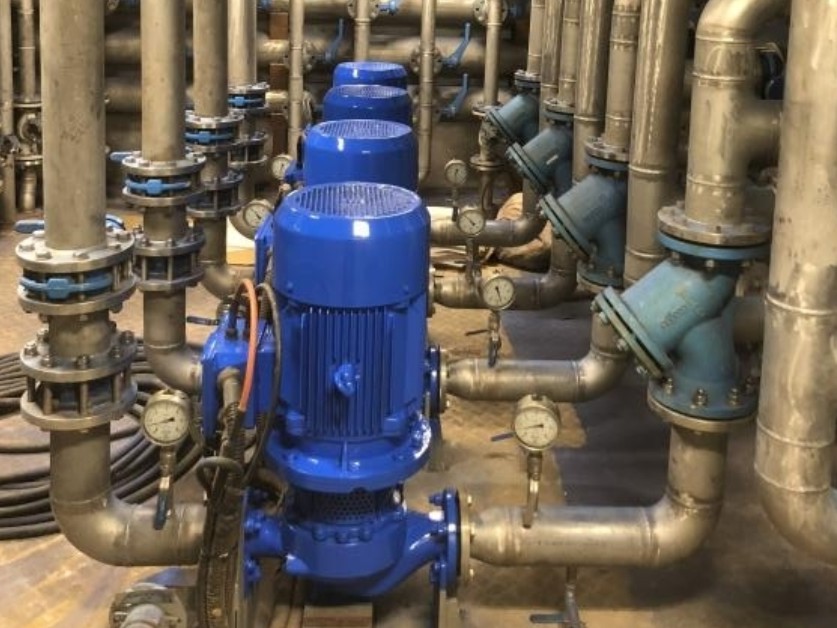

Refrigeration Engine Room

Reference2

260000CFT Reefer (a series of 2 vessels)

Vessel owner: EFTRANSPORT (MALTA)
Length: 128.00m
beam: 18.00m
Draught: 5.90m
Main engine: 3480.00kw
Vessel name: SAVANNA BREEZE; IMO: 9791274
Vessel name: SAVANNA WIND; IMO: 9791286
